eXOrgChart (organigram chart tree control)

The eXSuite package contains more than 40 components, with over 200 objects, 8,000 functions, and more than 2,000,000 lines of source code...

Download /.NET Site1/Site2 /COM/ActiveX Site1/Site2
(Last Update: Tuesday, February 5, 2008, Size: 6.49 MB)

The ExOrgChart component permits the totally automatic generation of organigrams. An organigram generally provides a clear picture of the hierarchical position of the various actors. The ExOrgChart control shows a hierarchical display of nodes, each one having an HTML caption, pictures and icons aligned to any side of the node. The ExOrgChart component lets the user changes its visual appearance using skins, each one providing an additional visual experience that enhances viewing pleasure.

Compatible with: VB, VB.NET, VBA, C++, C#, VFP, Access, HTML, Delphi, Smalltalk, eDeveloper
Released Version: 4.1.0.4
Lines of source code: 42,967 (36,732 excluding comments and empty lines)
Includes: Objects 4, Functions 233, Events 13, Definitions 12
See Also: EXOTool, eXTree, EBN

Features of eXOrgChart include:
  • COM/ActiveX or .NET Assembly ( as separate products )
  • Skinnable Interface support ( ability to apply a skin to any background part )
  • Ability to save/load the control's data to/from XML documents
  • Ability to arrange the child nodes horizontally, vertically or as a tree.
  • Ability to show the links between nodes round or rectangular.
  • Ability to specify new multiple parents or root nodes.
  • Ability to expand or collapse the nodes.
  • Ability to load icons or pictures from BASE64 encoded strings.
  • Ability to copy the control's content to the clipboard
  • Support for assistant nodes
  • Ability to zoom the chart
  • Print and Print Preview Support
  • WYSWYG Template/Layout Editor support
  • Multiple lines HTML ToolTip support
  • Background picture support
  • Mouse wheel support
  • Ability to explore only a branch of the organigram
  • Ability to display single or multiple layers of the organigram
  • Ability to scroll the organigram using the mouse or keyboard
  • Any node supports built-in HTML format
  • Ability to insert hyperlinks anywhere in the node's caption.
  • The node supports multiple lines with different alignments
  • Ability to assign icons, pictures to the node aligned to any side of it
  • AutoSize feature or fixed width, fixed height for any node supported
  • Ability to customize the distance between sibling or child nodes.
  • ANSI and UNICODE versions available
  • and more

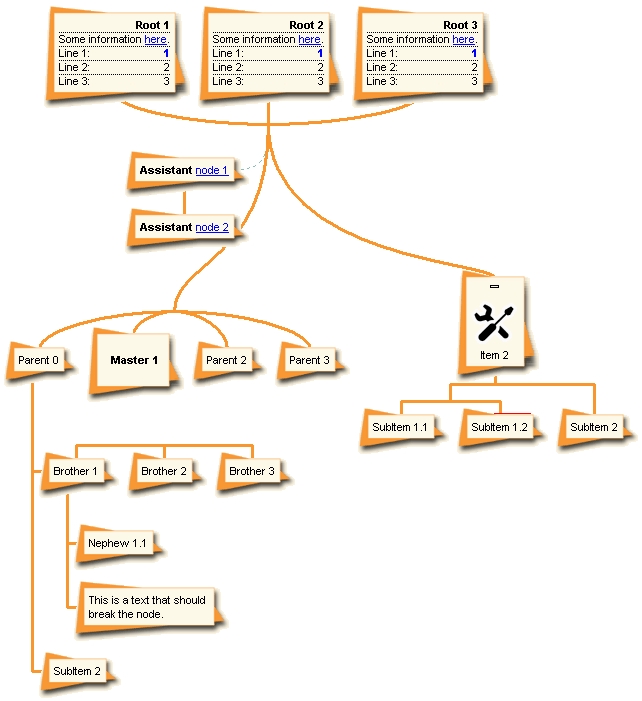

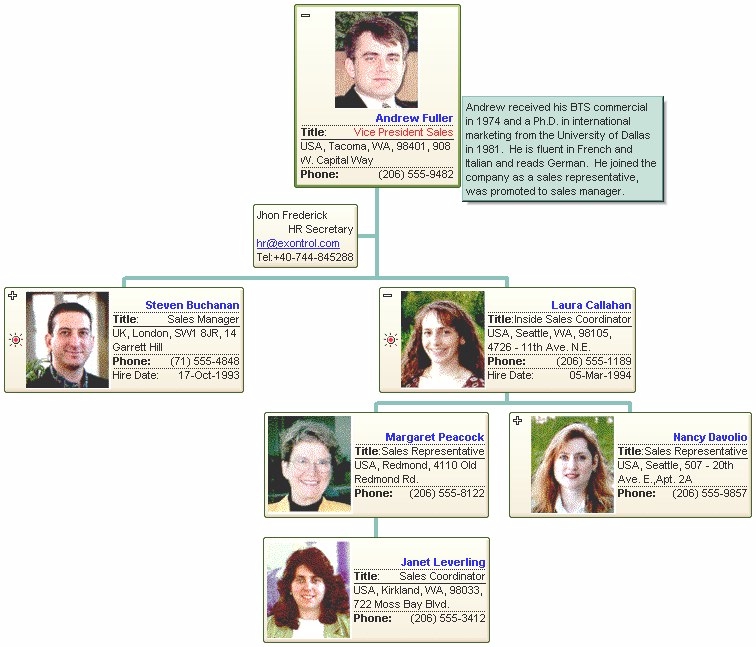

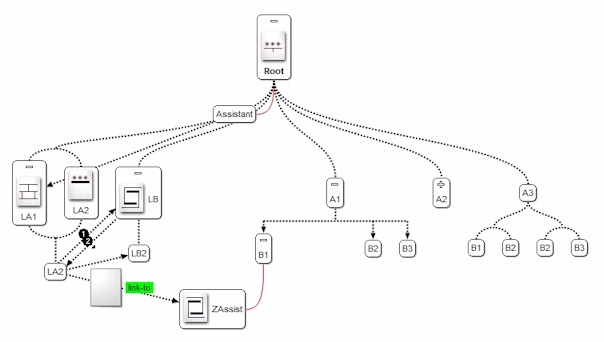

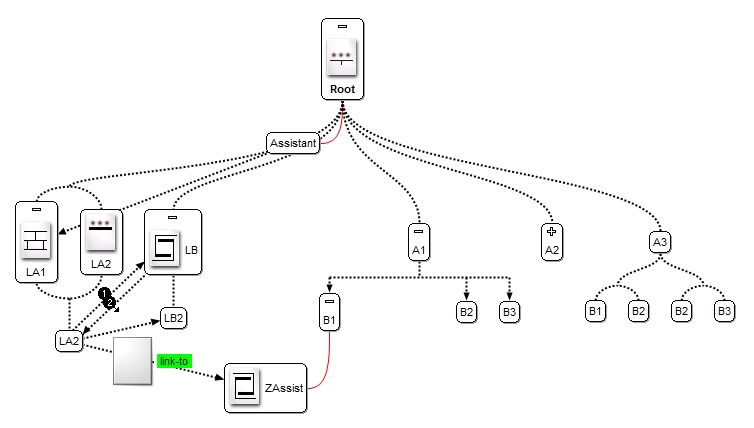

Click to enlarge!
Send your questions, comments or your feedback about eXOrgChart:

All of our controls are royalty-free and run-time license-fee free. This means that when you purchase our products (one copy per developer on your project), you may distribute the component you purchased with your applications without paying any run-time fees to us. We offer discounts on purchases of 3- and 10-developer packages.

  • Single Developer License
    A single developer may install and use one copy of the product. This copy may not be copied or lend.
  • Team License ( starting from 3 licenses )
    You may use as many copies of the product as your team license entitles to. This copy may not be copied or lend.
  • Source License
    A single developer may install and use one copy of the product. This copy may not be copied or lend. The source license includes the source code for the product. You may not re-distribute the source code either (nor may you copy it into your own project). Exontrol Inc. retains the copyright to the source code.
  • Site/Corporate License
    The Site Wide License allows unlimited developers at a single physical address. It is a special build that includes the company's name and the company's address who purchased the license. This copy may not be copied or lend.
