property ChartView.Frames as Frames
Gets the control's collection of frames.

TypeDescription
Frames A Frames collection that holds Frame objects.
The control supports frames, that provide unlimited options to show any HTML text, images, colors, EBNs, patterns, borders, anywhere on the frame's background, that's defined by union of any node on the chart. Use the Add method of the Frames collection to add new frames to the chart. The Padding property defines frame's padding. The Nodes property defines the nodes to be included in the frame.

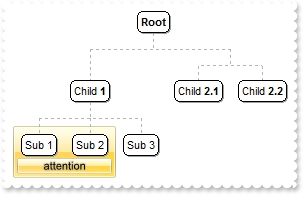

The following screen shot shows a frame around Sub 1 and Sub 2 nodes.

Is it possible to show some text/caption on the frame's background?

VBA (MS Access, Excell...)

With ChartView1
	.BeginUpdate
	.IndentSiblingY = 32
	.VisualAppearance.Add 1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" & _
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" & _
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" & _
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" & _
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" & _
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" & _
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" & _
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" & _
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" & _
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" & _
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" & _
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" & _
"AwAggAIAYFQQ4WgEggDIAQgI="
	With .Nodes
		.Add "Child <b>1</b>",,"1234"
		.Add "Sub 1","1234","AK1"
		.Add "Sub 2","1234","AK2"
		.Add "Sub 3","1234"
		.Add("Child <b>2.1</b>").AddGroup "Child <b>2.2</b>"
	End With
	With .Frames.Add("AK1,AK2")
		.Padding(-1) = 8
		.Padding(3) = 22
		.BackColor = &H1000000
		.Pattern.Type = 0
		.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
	End With
	.EndUpdate
End With

VB6

With ChartView1
	.BeginUpdate
	.IndentSiblingY = 32
	.VisualAppearance.Add 1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" & _
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" & _
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" & _
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" & _
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" & _
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" & _
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" & _
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" & _
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" & _
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" & _
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" & _
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" & _
"AwAggAIAYFQQ4WgEggDIAQgI="
	With .Nodes
		.Add "Child <b>1</b>",,"1234"
		.Add "Sub 1","1234","AK1"
		.Add "Sub 2","1234","AK2"
		.Add "Sub 3","1234"
		.Add("Child <b>2.1</b>").AddGroup "Child <b>2.2</b>"
	End With
	With .Frames.Add("AK1,AK2")
		.Padding(exPaddingAll) = 8
		.Padding(exPaddingBottom) = 22
		.BackColor = &H1000000
		.Pattern.Type = exPatternEmpty
		.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
	End With
	.EndUpdate
End With

VB.NET

With Exchartview1
	.BeginUpdate()
	.IndentSiblingY = 32
	.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" & _
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" & _
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" & _
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" & _
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" & _
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" & _
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" & _
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" & _
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" & _
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" & _
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" & _
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" & _
"AwAggAIAYFQQ4WgEggDIAQgI=")
	With .Nodes
		.Add("Child <b>1</b>",,"1234")
		.Add("Sub 1","1234","AK1")
		.Add("Sub 2","1234","AK2")
		.Add("Sub 3","1234")
		.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
	End With
	With .Frames.Add("AK1,AK2")
		.set_Padding(exontrol.EXORGCHARTLib.PaddingEdgeEnum.exPaddingAll,8)
		.set_Padding(exontrol.EXORGCHARTLib.PaddingEdgeEnum.exPaddingBottom,22)
		.BackColor32 = &H1000000
		.Pattern.Type = exontrol.EXORGCHARTLib.PatternEnum.exPatternEmpty
		.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
	End With
	.EndUpdate()
End With

VB.NET for /COM

With AxChartView1
	.BeginUpdate()
	.IndentSiblingY = 32
	.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" & _
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" & _
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" & _
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" & _
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" & _
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" & _
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" & _
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" & _
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" & _
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" & _
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" & _
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" & _
"AwAggAIAYFQQ4WgEggDIAQgI=")
	With .Nodes
		.Add("Child <b>1</b>",,"1234")
		.Add("Sub 1","1234","AK1")
		.Add("Sub 2","1234","AK2")
		.Add("Sub 3","1234")
		.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
	End With
	With .Frames.Add("AK1,AK2")
		.Padding(EXORGCHARTLib.PaddingEdgeEnum.exPaddingAll) = 8
		.Padding(EXORGCHARTLib.PaddingEdgeEnum.exPaddingBottom) = 22
		.BackColor = &H1000000
		.Pattern.Type = EXORGCHARTLib.PatternEnum.exPatternEmpty
		.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
	End With
	.EndUpdate()
End With

C++

/*
	Copy and paste the following directives to your header file as
	it defines the namespace 'EXORGCHARTLib' for the library: 'ExOrgChart 1.0 Control Library'

	#import <ExOrgChart.dll>
	using namespace EXORGCHARTLib;
*/
EXORGCHARTLib::IChartViewPtr spChartView1 = GetDlgItem(IDC_CHARTVIEW1)->GetControlUnknown();
spChartView1->BeginUpdate();
spChartView1->PutIndentSiblingY(32);
spChartView1->GetVisualAppearance()->Add(1,_bstr_t("gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf") +
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" +
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" +
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" +
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" +
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" +
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" +
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" +
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" +
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +
"AwAggAIAYFQQ4WgEggDIAQgI=");
EXORGCHARTLib::INodesPtr var_Nodes = spChartView1->GetNodes();
	var_Nodes->Add(L"Child <b>1</b>",vtMissing,"1234",vtMissing,vtMissing);
	var_Nodes->Add(L"Sub 1","1234","AK1",vtMissing,vtMissing);
	var_Nodes->Add(L"Sub 2","1234","AK2",vtMissing,vtMissing);
	var_Nodes->Add(L"Sub 3","1234",vtMissing,vtMissing,vtMissing);
	var_Nodes->Add(L"Child <b>2.1</b>",vtMissing,vtMissing,vtMissing,vtMissing)->AddGroup(L"Child <b>2.2</b>",vtMissing,vtMissing);
EXORGCHARTLib::IFramePtr var_Frame = spChartView1->GetFrames()->Add("AK1,AK2");
	var_Frame->PutPadding(EXORGCHARTLib::exPaddingAll,8);
	var_Frame->PutPadding(EXORGCHARTLib::exPaddingBottom,22);
	var_Frame->PutBackColor(0x1000000);
	var_Frame->GetPattern()->PutType(EXORGCHARTLib::exPatternEmpty);
	var_Frame->PutBackgroundExt(L"top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]");
spChartView1->EndUpdate();

C++ Builder

ChartView1->BeginUpdate();
ChartView1->IndentSiblingY = 32;
ChartView1->VisualAppearance->Add(1,TVariant(String("gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf") +
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" +
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" +
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" +
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" +
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" +
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" +
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" +
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" +
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +
"AwAggAIAYFQQ4WgEggDIAQgI="));
Exorgchartlib_tlb::INodesPtr var_Nodes = ChartView1->Nodes;
	var_Nodes->Add(L"Child <b>1</b>",TNoParam(),TVariant("1234"),TNoParam(),TNoParam());
	var_Nodes->Add(L"Sub 1",TVariant("1234"),TVariant("AK1"),TNoParam(),TNoParam());
	var_Nodes->Add(L"Sub 2",TVariant("1234"),TVariant("AK2"),TNoParam(),TNoParam());
	var_Nodes->Add(L"Sub 3",TVariant("1234"),TNoParam(),TNoParam(),TNoParam());
	var_Nodes->Add(L"Child <b>2.1</b>",TNoParam(),TNoParam(),TNoParam(),TNoParam())->AddGroup(L"Child <b>2.2</b>",TNoParam(),TNoParam());
Exorgchartlib_tlb::IFramePtr var_Frame = ChartView1->Frames->Add(TVariant("AK1,AK2"));
	var_Frame->set_Padding(Exorgchartlib_tlb::PaddingEdgeEnum::exPaddingAll,8);
	var_Frame->set_Padding(Exorgchartlib_tlb::PaddingEdgeEnum::exPaddingBottom,22);
	var_Frame->BackColor = 0x1000000;
	var_Frame->Pattern->Type = Exorgchartlib_tlb::PatternEnum::exPatternEmpty;
	var_Frame->BackgroundExt = L"top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]";
ChartView1->EndUpdate();

C#

exchartview1.BeginUpdate();
exchartview1.IndentSiblingY = 32;
exchartview1.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" +
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" +
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" +
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" +
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" +
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" +
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" +
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" +
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" +
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +
"AwAggAIAYFQQ4WgEggDIAQgI=");
exontrol.EXORGCHARTLib.Nodes var_Nodes = exchartview1.Nodes;
	var_Nodes.Add("Child <b>1</b>",null,"1234",null,null);
	var_Nodes.Add("Sub 1","1234","AK1",null,null);
	var_Nodes.Add("Sub 2","1234","AK2",null,null);
	var_Nodes.Add("Sub 3","1234",null,null,null);
	var_Nodes.Add("Child <b>2.1</b>",null,null,null,null).AddGroup("Child <b>2.2</b>",null,null);
exontrol.EXORGCHARTLib.Frame var_Frame = exchartview1.Frames.Add("AK1,AK2");
	var_Frame.set_Padding(exontrol.EXORGCHARTLib.PaddingEdgeEnum.exPaddingAll,8);
	var_Frame.set_Padding(exontrol.EXORGCHARTLib.PaddingEdgeEnum.exPaddingBottom,22);
	var_Frame.BackColor32 = 0x1000000;
	var_Frame.Pattern.Type = exontrol.EXORGCHARTLib.PatternEnum.exPatternEmpty;
	var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]";
exchartview1.EndUpdate();

JScript/JavaScript

<BODY onload="Init()">
<OBJECT CLASSID="clsid:F4DFE455-01FE-420E-A088-64346DCC3791" id="ChartView1"></OBJECT>

<SCRIPT LANGUAGE="JScript">
function Init()
{
	ChartView1.BeginUpdate();
	ChartView1.IndentSiblingY = 32;
	ChartView1.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" +
	"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" +
	"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" +
	"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +
	"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" +
	"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" +
	"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" +
	"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +
	"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" +
	"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" +
	"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" +
	"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +
	"AwAggAIAYFQQ4WgEggDIAQgI=");
	var var_Nodes = ChartView1.Nodes;
		var_Nodes.Add("Child <b>1</b>",null,"1234",null,null);
		var_Nodes.Add("Sub 1","1234","AK1",null,null);
		var_Nodes.Add("Sub 2","1234","AK2",null,null);
		var_Nodes.Add("Sub 3","1234",null,null,null);
		var_Nodes.Add("Child <b>2.1</b>",null,null,null,null).AddGroup("Child <b>2.2</b>",null,null);
	var var_Frame = ChartView1.Frames.Add("AK1,AK2");
		var_Frame.Padding(-1) = 8;
		var_Frame.Padding(3) = 22;
		var_Frame.BackColor = 16777216;
		var_Frame.Pattern.Type = 0;
		var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]";
	ChartView1.EndUpdate();
}
</SCRIPT>
</BODY>

VBScript

<BODY onload="Init()">
<OBJECT CLASSID="clsid:F4DFE455-01FE-420E-A088-64346DCC3791" id="ChartView1"></OBJECT>

<SCRIPT LANGUAGE="VBScript">
Function Init()
	With ChartView1
		.BeginUpdate
		.IndentSiblingY = 32
		.VisualAppearance.Add 1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" & _
	"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" & _
	"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" & _
	"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" & _
	"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" & _
	"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" & _
	"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" & _
	"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" & _
	"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" & _
	"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" & _
	"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" & _
	"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" & _
	"AwAggAIAYFQQ4WgEggDIAQgI="
		With .Nodes
			.Add "Child <b>1</b>",,"1234"
			.Add "Sub 1","1234","AK1"
			.Add "Sub 2","1234","AK2"
			.Add "Sub 3","1234"
			.Add("Child <b>2.1</b>").AddGroup "Child <b>2.2</b>"
		End With
		With .Frames.Add("AK1,AK2")
			.Padding(-1) = 8
			.Padding(3) = 22
			.BackColor = &H1000000
			.Pattern.Type = 0
			.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
		End With
		.EndUpdate
	End With
End Function
</SCRIPT>
</BODY>

C# for /COM

axChartView1.BeginUpdate();
axChartView1.IndentSiblingY = 32;
axChartView1.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxf" +
"IMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5m" +
"XpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+Hh" +
"RjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +
"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRj" +
"mkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" +
"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0g" +
"YOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +
"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISks" +
"SQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBG" +
"O/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwOR" +
"fjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +
"AwAggAIAYFQQ4WgEggDIAQgI=");
EXORGCHARTLib.Nodes var_Nodes = axChartView1.Nodes;
	var_Nodes.Add("Child <b>1</b>",null,"1234",null,null);
	var_Nodes.Add("Sub 1","1234","AK1",null,null);
	var_Nodes.Add("Sub 2","1234","AK2",null,null);
	var_Nodes.Add("Sub 3","1234",null,null,null);
	var_Nodes.Add("Child <b>2.1</b>",null,null,null,null).AddGroup("Child <b>2.2</b>",null,null);
EXORGCHARTLib.Frame var_Frame = axChartView1.Frames.Add("AK1,AK2");
	var_Frame.set_Padding(EXORGCHARTLib.PaddingEdgeEnum.exPaddingAll,8);
	var_Frame.set_Padding(EXORGCHARTLib.PaddingEdgeEnum.exPaddingBottom,22);
	var_Frame.BackColor = 0x1000000;
	var_Frame.Pattern.Type = EXORGCHARTLib.PatternEnum.exPatternEmpty;
	var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]";
axChartView1.EndUpdate();

X++ (Dynamics Ax 2009)

public void init()
{
	COM com_Frame,com_Node,com_Nodes,com_Pattern;
	anytype var_Frame,var_Node,var_Nodes,var_Pattern;
	str var_s;
	;

	super();

	exchartview1.BeginUpdate();
	exchartview1.IndentSiblingY(32);
	var_s = "gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfI";
	var_s = var_s + "MIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mX";
	var_s = var_s + "pCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhR";
	var_s = var_s + "jqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYV";
	var_s = var_s + "IKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjm";
	var_s = var_s + "kUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5";
	var_s = var_s + "oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gY";
	var_s = var_s + "OxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJB";
	var_s = var_s + "DiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksS";
	var_s = var_s + "QsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO";
	var_s = var_s + "/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORf";
	var_s = var_s + "jjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAA";
	var_s = var_s + "wAggAIAYFQQ4WgEggDIAQgI=";
	exchartview1.VisualAppearance().Add(1,COMVariant::createFromStr(var_s));
	var_Nodes = exchartview1.Nodes(); com_Nodes = var_Nodes;
		com_Nodes.Add("Child <b>1</b>",,"1234");
		com_Nodes.Add("Sub 1","1234","AK1");
		com_Nodes.Add("Sub 2","1234","AK2");
		com_Nodes.Add("Sub 3","1234");
		var_Node = COM::createFromObject(com_Nodes.Add("Child <b>2.1</b>")); com_Node = var_Node;
		com_Node.AddGroup("Child <b>2.2</b>");
	var_Frame = COM::createFromObject(exchartview1.Frames()).Add("AK1,AK2"); com_Frame = var_Frame;
		com_Frame.Padding(-1/*exPaddingAll*/,8);
		com_Frame.Padding(3/*exPaddingBottom*/,22);
		com_Frame.BackColor(0x1000000);
		var_Pattern = COM::createFromObject(com_Frame.Pattern()); com_Pattern = var_Pattern;
		com_Pattern.Type(0/*exPatternEmpty*/);
		com_Frame.BackgroundExt("top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]");
	exchartview1.EndUpdate();
}

Delphi 8 (.NET only)

with AxChartView1 do
begin
	BeginUpdate();
	IndentSiblingY := 32;
	VisualAppearance.Add(1,'gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfI' +
	'MIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mX' +
	'pCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhR' +
	'jqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYV' +
	'IKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjm' +
	'kUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5' +
	'oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gY' +
	'OxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJB' +
	'DiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksS' +
	'QsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO' +
	'/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORf' +
	'jjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAA' +
	'wAggAIAYFQQ4WgEggDIAQgI=');
	with Nodes do
	begin
		Add('Child <b>1</b>',Nil,'1234',Nil,Nil);
		Add('Sub 1','1234','AK1',Nil,Nil);
		Add('Sub 2','1234','AK2',Nil,Nil);
		Add('Sub 3','1234',Nil,Nil,Nil);
		Add('Child <b>2.1</b>',Nil,Nil,Nil,Nil).AddGroup('Child <b>2.2</b>',Nil,Nil);
	end;
	with Frames.Add('AK1,AK2') do
	begin
		Padding[EXORGCHARTLib.PaddingEdgeEnum.exPaddingAll] := 8;
		Padding[EXORGCHARTLib.PaddingEdgeEnum.exPaddingBottom] := 22;
		BackColor := $1000000;
		Pattern.Type := EXORGCHARTLib.PatternEnum.exPatternEmpty;
		BackgroundExt := 'top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]';
	end;
	EndUpdate();
end

Delphi (standard)

with ChartView1 do
begin
	BeginUpdate();
	IndentSiblingY := 32;
	VisualAppearance.Add(1,'gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfI' +
	'MIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mX' +
	'pCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhR' +
	'jqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYV' +
	'IKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjm' +
	'kUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5' +
	'oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gY' +
	'OxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJB' +
	'DiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksS' +
	'QsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO' +
	'/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORf' +
	'jjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAA' +
	'wAggAIAYFQQ4WgEggDIAQgI=');
	with Nodes do
	begin
		Add('Child <b>1</b>',Null,'1234',Null,Null);
		Add('Sub 1','1234','AK1',Null,Null);
		Add('Sub 2','1234','AK2',Null,Null);
		Add('Sub 3','1234',Null,Null,Null);
		Add('Child <b>2.1</b>',Null,Null,Null,Null).AddGroup('Child <b>2.2</b>',Null,Null);
	end;
	with Frames.Add('AK1,AK2') do
	begin
		Padding[EXORGCHARTLib_TLB.exPaddingAll] := 8;
		Padding[EXORGCHARTLib_TLB.exPaddingBottom] := 22;
		BackColor := $1000000;
		Pattern.Type := EXORGCHARTLib_TLB.exPatternEmpty;
		BackgroundExt := 'top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]';
	end;
	EndUpdate();
end

VFP

with thisform.ChartView1
	.BeginUpdate
	.IndentSiblingY = 32
	var_s = "gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfI"
	var_s = var_s + "MIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mX"
	var_s = var_s + "pCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhR"
	var_s = var_s + "jqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYV"
	var_s = var_s + "IKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjm"
	var_s = var_s + "kUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5"
	var_s = var_s + "oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gY"
	var_s = var_s + "OxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJB"
	var_s = var_s + "DiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksS"
	var_s = var_s + "QsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO"
	var_s = var_s + "/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORf"
	var_s = var_s + "jjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAA"
	var_s = var_s + "wAggAIAYFQQ4WgEggDIAQgI="
	.VisualAppearance.Add(1,var_s)
	with .Nodes
		.Add("Child <b>1</b>",Null,"1234")
		.Add("Sub 1","1234","AK1")
		.Add("Sub 2","1234","AK2")
		.Add("Sub 3","1234")
		.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
	endwith
	with .Frames.Add("AK1,AK2")
		.Padding(-1) = 8
		.Padding(3) = 22
		.BackColor = 0x1000000
		.Pattern.Type = 0
		.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
	endwith
	.EndUpdate
endwith

dBASE Plus

local oChartView,var_Frame,var_Nodes

oChartView = form.EXORGCHARTACTIVEXCONTROL1.nativeObject
oChartView.BeginUpdate()
oChartView.IndentSiblingY = 32
oChartView.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYVIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI" ;
 +"5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJBDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" &
 +"AwAggAIAYFQQ4WgEggDIAQgI=")
var_Nodes = oChartView.Nodes
	var_Nodes.Add("Child <b>1</b>",null,"1234")
	var_Nodes.Add("Sub 1","1234","AK1")
	var_Nodes.Add("Sub 2","1234","AK2")
	var_Nodes.Add("Sub 3","1234")
	var_Nodes.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
var_Frame = oChartView.Frames.Add("AK1,AK2")
	// var_Frame.Padding(-1) = 8
	with (oChartView)
		TemplateDef = [dim var_Frame]
		TemplateDef = var_Frame
		Template = [var_Frame.Padding(-1) = 8]
	endwith
	// var_Frame.Padding(3) = 22
	with (oChartView)
		TemplateDef = [dim var_Frame]
		TemplateDef = var_Frame
		Template = [var_Frame.Padding(3) = 22]
	endwith
	var_Frame.BackColor = 0x1000000
	var_Frame.Pattern.Type = 0
	var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
oChartView.EndUpdate()

XBasic (Alpha Five)

Dim oChartView as P
Dim var_Frame as P
Dim var_Nodes as P

oChartView = topparent:CONTROL_ACTIVEX1.activex
oChartView.BeginUpdate()
oChartView.IndentSiblingY = 32
oChartView.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYVIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJBDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAAwAggAIAYFQQ4WgEggDIAQgI=")
var_Nodes = oChartView.Nodes
	var_Nodes.Add("Child <b>1</b>",,"1234")
	var_Nodes.Add("Sub 1","1234","AK1")
	var_Nodes.Add("Sub 2","1234","AK2")
	var_Nodes.Add("Sub 3","1234")
	var_Nodes.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
var_Frame = oChartView.Frames.Add("AK1,AK2")
	' var_Frame.Padding(-1) = 8
	oChartView.TemplateDef = "dim var_Frame"
	oChartView.TemplateDef = var_Frame
	oChartView.Template = "var_Frame.Padding(-1) = 8"

	' var_Frame.Padding(3) = 22
	oChartView.TemplateDef = "dim var_Frame"
	oChartView.TemplateDef = var_Frame
	oChartView.Template = "var_Frame.Padding(3) = 22"

	var_Frame.BackColor = 16777216
	var_Frame.Pattern.Type = 0
	var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
oChartView.EndUpdate()

Visual Objects

local var_Frame as IFrame
local var_Nodes as INodes

oDCOCX_Exontrol1:BeginUpdate()
oDCOCX_Exontrol1:IndentSiblingY := 32
oDCOCX_Exontrol1:VisualAppearance:Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYVIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJBDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAAwAggAIAYFQQ4WgEggDIAQgI=")
var_Nodes := oDCOCX_Exontrol1:Nodes
	var_Nodes:Add("Child <b>1</b>",nil,"1234",nil,nil)
	var_Nodes:Add("Sub 1","1234","AK1",nil,nil)
	var_Nodes:Add("Sub 2","1234","AK2",nil,nil)
	var_Nodes:Add("Sub 3","1234",nil,nil,nil)
	var_Nodes:Add("Child <b>2.1</b>",nil,nil,nil,nil):AddGroup("Child <b>2.2</b>",nil,nil)
var_Frame := oDCOCX_Exontrol1:Frames:Add("AK1,AK2")
	var_Frame:[Padding,exPaddingAll] := 8
	var_Frame:[Padding,exPaddingBottom] := 22
	var_Frame:BackColor := 0x1000000
	var_Frame:Pattern:Type := exPatternEmpty
	var_Frame:BackgroundExt := "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
oDCOCX_Exontrol1:EndUpdate()

PowerBuilder

OleObject oChartView,var_Frame,var_Nodes

oChartView = ole_1.Object
oChartView.BeginUpdate()
oChartView.IndentSiblingY = 32
oChartView.VisualAppearance.Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYVIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" &
 +"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAAwAggAIAYFQQ4WgEggDIAQgI=")
var_Nodes = oChartView.Nodes
	var_Nodes.Add("Child <b>1</b>",,"1234")
	var_Nodes.Add("Sub 1","1234","AK1")
	var_Nodes.Add("Sub 2","1234","AK2")
	var_Nodes.Add("Sub 3","1234")
	var_Nodes.Add("Child <b>2.1</b>").AddGroup("Child <b>2.2</b>")
var_Frame = oChartView.Frames.Add("AK1,AK2")
	var_Frame.Padding(-1,8)
	var_Frame.Padding(3,22)
	var_Frame.BackColor = 16777216 /*0x1000000*/
	var_Frame.Pattern.Type = 0
	var_Frame.BackgroundExt = "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
oChartView.EndUpdate()

Visual DataFlex

Procedure OnCreate
	Forward Send OnCreate
	Send ComBeginUpdate
	Set ComIndentSiblingY to 32
	Variant voAppearance
	Get ComVisualAppearance to voAppearance
	Handle hoAppearance
	Get Create (RefClass(cComAppearance)) to hoAppearance
	Set pvComObject of hoAppearance to voAppearance
		Get ComAdd of hoAppearance 1 "gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBYVIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJBDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFAAwAggAIAYFQQ4WgEggDIAQgI=" to Nothing
	Send Destroy to hoAppearance
	Variant voNodes
	Get ComNodes to voNodes
	Handle hoNodes
	Get Create (RefClass(cComNodes)) to hoNodes
	Set pvComObject of hoNodes to voNodes
		Get ComAdd of hoNodes "Child <b>1</b>" "1234" Nothing Nothing to Nothing
		Get ComAdd of hoNodes "Sub 1" "1234" "AK1" Nothing Nothing to Nothing
		Get ComAdd of hoNodes "Sub 2" "1234" "AK2" Nothing Nothing to Nothing
		Get ComAdd of hoNodes "Sub 3" "1234" Nothing Nothing Nothing to Nothing
		Variant voNode
		Get ComAdd of hoNodes "Child <b>2.1</b>" Nothing Nothing Nothing Nothing to voNode
		Handle hoNode
		Get Create (RefClass(cComNode)) to hoNode
		Set pvComObject of hoNode to voNode
			Get ComAddGroup of hoNode "Child <b>2.2</b>" Nothing Nothing to Nothing
		Send Destroy to hoNode
	Send Destroy to hoNodes
	Variant voFrames
	Get ComFrames to voFrames
	Handle hoFrames
	Get Create (RefClass(cComFrames)) to hoFrames
	Set pvComObject of hoFrames to voFrames
		Variant voFrame
		Get ComAdd of hoFrames "AK1,AK2" to voFrame
		Handle hoFrame
		Get Create (RefClass(cComFrame)) to hoFrame
		Set pvComObject of hoFrame to voFrame
			Set ComPadding of hoFrame OLEexPaddingAll to 8
			Set ComPadding of hoFrame OLEexPaddingBottom to 22
			Set ComBackColor of hoFrame to |CI$1000000
			Variant voPattern
			Get ComPattern of hoFrame to voPattern
			Handle hoPattern
			Get Create (RefClass(cComPattern)) to hoPattern
			Set pvComObject of hoPattern to voPattern
				Set ComType of hoPattern to OLEexPatternEmpty
			Send Destroy to hoPattern
			Set ComBackgroundExt of hoFrame to "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
		Send Destroy to hoFrame
	Send Destroy to hoFrames
	Send ComEndUpdate
End_Procedure

XBase++

#include "AppEvent.ch"
#include "ActiveX.ch"

PROCEDURE Main
 	LOCAL oForm
	LOCAL nEvent := 0, mp1 := NIL, mp2 := NIL, oXbp := NIL
	LOCAL oChartView
	LOCAL oFrame
	LOCAL oNodes

	oForm := XbpDialog():new( AppDesktop() )
	oForm:drawingArea:clipChildren := .T.
	oForm:create( ,,{100,100}, {640,480},, .F. )
	oForm:close  := {|| PostAppEvent( xbeP_Quit )}

	oChartView := XbpActiveXControl():new( oForm:drawingArea )
	oChartView:CLSID  := "Exontrol.ChartView.1" /*{F4DFE455-01FE-420E-A088-64346DCC3791}*/
	oChartView:create(,, {10,60},{610,370} )

		oChartView:BeginUpdate()
		oChartView:IndentSiblingY := 32
		oChartView:VisualAppearance():Add(1,"gBFLBCJwBAEHhEJAADhABWMMACAADACAxRDAMgBQKAAzQFAYawdBgABoGUZ4JhUAIIRZGMIjFDcEwxC6NIpAWCYQDENAxAJCI4DBCAZBwGKPRiASQZUhmHIDTbIEBxfIMIRLE6PZgjOYZchqRYZSjAdIzUAFFr1J4AKbfKJpfoKBJERrScgxeBUNAZBKlY7paoKSpSGw1CTLNoRAKoYTTBK2bbmWwoap2So1XhAdS0XJcWxfGKRbxmWaZZh+R5mXpCMjVMAGGQPIa8MLCSwIJBaHqUQLZNixLStAyxHCtKKhG+vJwHL6BcqnPKKRqSUKcWbcQADFZdYTdNjbch1TWvSZVQSecSke7BQjGJQ2YxWcZUXReeaBDK9ZS4WK+HhRjqAZpCkeoNC8P4DDiWp3nYVwdkaSgrGGVhSnSHJum6CgGAiBIUA0JgziGVJkGWRgTiGBAiG+ZgyDYQhCgQJZbG+UIAGEFgGBEBw9FILJNAMXgMgOIJYD4EoEGESBCBY" +;
		"VIKGMIJTCiDpDliNQ+A+eB+CGCAiCiFgkgmT54HCdoGE0MhgkAM4LhOWJ/CQThIk4NQik4I5+DgP5IDOBJ/B2TgDnwaQ3k+cR0l4P5jBOfguDOCIimCSgwCMKJuDsIRjmkUJ/B8JBBkIRAYmQcRglwP5lAOfhNDKCAikSRgxE8WJyEQIJkEGdhHhuD5xlSXYQicMR0lsP5FBmXhoD+ZhTBgfQrgwMwUnQP5HikfoFhwZxxlYdwbW0CJaWKag8EuI5oTufwwkeIoskIMYPDOfB0iOaZznwbw2GoKoQGaKQFjqEBQikBBjGCf4nCgShoLyTCZnIP5GlqOo5YgAxejyL4GAqeBWi+BI6ngQYvisY5+jMMBHHKHJAjIRoDFqPI0gYOxSlIFptCERpSBGbQgn6SItmyUwAHaM4MgqXBljSLl7GANRuiuMBajsBQLEgRY0gOSxKmUP5uDuCpODIaxxgqbI/g+cR8lSQBwDEYpsBObpBBabAPG6S5yniM4HHKIJ" +;
		"BDiT4TnyKQ6nEbBjBeRhPnKGwYCkMYCgcGAnnGDBSD+RIHhKKJDDmMRSkSbg/nKY58jAOxzCyUIuk0CpMlCKfXAyUwsdIEwMHxZ5TiieoSA6fQjEoLh0hKWxJC0NISksSQsDSHQaFeUQIAKRJIDuT5DnyQ4tnWfR7GCLZMBqXI+i2S5KlyOvukOfxZDICAylSSg8jWUwyGmXYPnMNhpl6/sLg0gxjNBmNkRIQR3CRHMOQIYlwjBxHQH4T45hSBBGO/sVgQRkv7EyO4P4mgeC5E+MsTIvBfgWD+PFBIFgvgaTaPwP4mxdA/CmNQOoWgci5FGJsLAqRYiKE0PgV4TQOh0EIHkQ4xw6DnBMLsb4Hx/AHEAHEdYpwIj2D+JwDwORfjjE+B0H4dA1ASKcK8UYnxzhXAyOsPQvhfgYDoPEQ4RwMBziqDYXY6g9AmFyCwMomwThxHkH0fA5x/jbHuJ8f4dxxj4D8Ecf41A+j8HMMoUgTBMjGG+Pgf4nx1j/EAFA" +;
		"AwAggAIAYFQQ4WgEggDIAQgI=")
		oNodes := oChartView:Nodes()
			oNodes:Add("Child <b>1</b>",,"1234")
			oNodes:Add("Sub 1","1234","AK1")
			oNodes:Add("Sub 2","1234","AK2")
			oNodes:Add("Sub 3","1234")
			oNodes:Add("Child <b>2.1</b>"):AddGroup("Child <b>2.2</b>")
		oFrame := oChartView:Frames():Add("AK1,AK2")
			oFrame:SetProperty("Padding",-1/*exPaddingAll*/,8)
			oFrame:SetProperty("Padding",3/*exPaddingBottom*/,22)
			oFrame:SetProperty("BackColor",0x1000000)
			oFrame:Pattern():Type := 0/*exPatternEmpty*/
			oFrame:BackgroundExt := "top[4],left[4],right[4],client,bottom[4],bottom[16,back=0x01000000,text=`<sha ;;0>attention`,align=0x11]"
		oChartView:EndUpdate()

	oForm:Show()
	DO WHILE nEvent != xbeP_Quit
		nEvent := AppEvent( @mp1, @mp2, @oXbp )
		oXbp:handleEvent( nEvent, mp1, mp2 )
	ENDDO
RETURN
