constants BackgroundExtPropertyEnum
The BackgroundExtPropertyEnum type specifies the UI properties of the part of the EBN you can access/change at runtime. The BackgroundExt property specifies the EBN String format to be displayed on the node's background. The BackgroundExtValue property access the value of the giving property for specified part of the EBN. The BackgroundExtPropertyEnum type supports the following values:

 NameValueDescription
   exToStringExt0 Specifies the part's ToString representation. The BackgroundExt property specifies the EBN String format to be displayed on the object's background. The Exontrol's eXButton WYSWYG Builder helps you to generate or view the EBN String Format, in the To String field.

Sample:

"client(right[18](bottom[18,pattern=6,frame=0,framethick]),bottom[48,align=0x11]),left[18](bottom[18,pattern=6,frame=0,framethick])

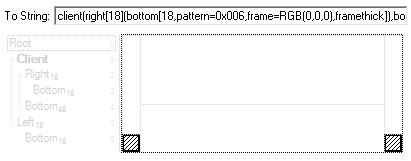

generates the following layout:

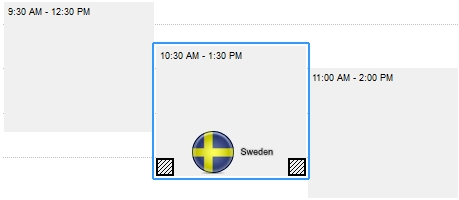

where it is applied to an object it looks as follows:

(String expression, read-only).


   exBackColorExt1 Indicates the background color / EBN color to be shown on the part of the object. Sample: 255 indicates red, RGB(0,255,0) green, or 0x1000000.

(Color/Numeric expression, The last 7 bits in the high significant byte of the color indicate the identifier of the skin being used )


   exClientExt2 Specifies the position/size of the object, depending on the object's anchor. The syntax of the exClientExt is related to the exAnchorExt value. For instance, if the object is anchored to the left side of the parent ( exAnchorExt = 1 ), the exClientExt specifies just the width of the part in pixels/percents, not including the position. In case, the exAnchorExt is client, the exClientExt has no effect.

Based on the exAnchorExt value the exClientExt is:

  • 0 (none, the object is not anchored to any side), the format of the exClientExt is "left,top,width,height" ( as string ) where (left,top) margin indicates the position where the part starts, and the (width,height) pair specifies its size. The left, top, width or height could be any expression (+,-,/ or * ) that can include numbers associated with pixels or percents. For instance: "25%,25%,50%,50%" indicates the middle of the parent object, and so when the parent is resized the client is resized accordingly. The "50%-8,50%-8,16,16" value specifies that the size of the object is always 16x16 pixels and positioned on the center of the parent object.
  • 1 (left, the object is anchored to left side of the parent), the format of the exClientExt is width ( string or numeric ) where width indicates the width of the object in pixels, percents or a combination of them using +,-,/ or * operators. For instance: "50%" indicates the half of the parent object, and so when the parent is resized the client is resized accordingly. The 16 value specifies that the size of the object is always 16 pixels.
  • 2 (right, the object is anchored to right side of the parent object), the format of the exClientExt is width ( string or numeric ) where width indicates the width of the object in pixels, percents or a combination of them using +,-,/ or * operators. For instance: "50%" indicates the half of the parent object, and so when the parent is resized the client is resized accordingly. The 16 value specifies that the size of the object is always 16 pixels.
  • 3 (client, the object takes the full available area of the parent), the exClientExt has no effect.
  • 4 (top, the object is anchored to the top side of the parent object), the format of the exClientExt is height ( string or numeric ) where height indicates the height of the object in pixels, percents or a combination of them using +,-,/ or * operators. For instance: "50%" indicates the half of the parent object, and so when the parent is resized the client is resized accordingly. The 16 value specifies that the size of the object is always 16 pixels.
  • 5 (bottom, the object is anchored to bottom side of the parent object), the format of the exClientExt is height ( string or numeric ) where height indicates the height of the object in pixels, percents or a combination of them using +,-,/ or * operators. For instance: "50%" indicates the half of the parent object, and so when the parent is resized the client is resized accordingly. The 16 value specifies that the size of the object is always 16 pixels.

Sample: 50% indicates half of the parent, 25 indicates 25 pixels, or 50%-8 indicates 8-pixels left from the center of the parent.

(String/Numeric expression)


   exAnchorExt3 Specifies the object's alignment relative to its parent.

The valid values for exAnchorExt are:

  • 0 (none), the object is not anchored to any side,
  • 1 (left), the object is anchored to left side of the parent,
  • 2 (right), the object is anchored to right side of the parent object,
  • 3 (client), the object takes the full available area of the parent,
  • 4 (top), the object is anchored to the top side of the parent object,
  • 5 (bottom), the object is anchored to bottom side of the parent object

(Numeric expression)


   exTextExt4 Specifies the HTML text to be displayed on the object.

The exTextExt supports the following built-in HTML tags:

  • <b>  bold </b> bolds a part of the caption.
  • <u> underline </u> specifies that the portion should appear as underlined.
  • <s> strikeout </s> specifies that the portion should appear as strikeout.
  • <i> italic </i> specifies that the portion should appear as italic.
  • <fgcolor=FF0000> fgcolor </fgcolor> changes the foreground color for a portion.
  • <bgcolor=FF0000> bgcolor </bgcolor> changes the background color for a portion.
  • <br> breaks a line.
  • <c> centers the text.
  • <r> aligns the rest of the text line to the right side. It has no effect if the caption contains a single line.
  • <img>number[:width]</img> inserts an icon inside the cell's caption. The number indicates the index of the icon being inserted. The width is optional and indicates the width of the icon being inserted. Using the width option you can overwrite multiple icons getting a nice effect. By default, if the width field is missing, the width is 18 pixels. The Images method specifies the list of icons the control can display.
  • <img>key[:width]</img> inserts a custom size picture being loaded using the HTMLPicture property. The Key parameter indicates the key of the picture being displayed. The Width parameter indicates a custom size, if you require to stretch the picture, else the original size of the picture is used.
  • <font face;size> ... </font> displays portions of text with a different font and/or different size. For instance, the <font Tahoma;12>bit</font> draws the bit text using the Tahoma font, on size 12 pt. If the name of the font is missing, and instead size is present, the current font is used with a different size. For instance, <font ;12>bit</font> displays the bit text using the current font, but with a different size.
  • <solidline> draws a solid line. If has no effect for a single line caption.
  • <dotline> draws a dotted line. If has no effect for a single line caption.
  • <upline> draws the line to the top of the text line
Newer HTML format supports subscript and superscript like follows:
  • <off offset> ... </off> defines the vertical offset to display the text/element. The offset parameter defines the offset to display the element. This tag is inheritable, so the offset is keep while the associated </off> tag is found. You can use the <off offset> HTML tag in combination with the <font face;size> to define a smaller or a larger font to be displayed. For instance: "Text with <font ;7><off 6>subscript" displays the text such as: Text with subscript The "Text with <font ;7><off -6>superscript" displays the text such as: Text with subscript

Newer HTML format supports decorative text like follows:

  • <gra rrggbb;mode;blend> ... </gra> defines a gradient text. The text color or <fgcolor> defines the starting gradient color, while the rr/gg/bb represents the red/green/blue values of the ending color, 808080 if missing as gray. The mode is a value between 0 and 4, 1 if missing, and blend could be 0 or 1, 0 if missing. The <font> HTML tag can be used to define the height of the font. Any of the rrggbb, mode or blend field may not be specified. The <gra> with no fields, shows a vertical gradient color from the current text color to gray (808080). For instance the "<font ;18><gra FFFFFF;1;1>gradient-center</gra></font>" generates the following picture:

  • <out rrggbb;width> ... </out> shows the text with outlined characters, where rr/gg/bb represents the red/green/blue values of the outline color, 808080 if missing as gray, width indicates the size of the outline, 1 if missing. The text color or <fgcolor> defines the color to show the inside text. The <font> HTML tag can be used to define the height of the font. For instance the "<font ;31><out 000000><fgcolor=FFFFFF>outlined</fgcolor></out></font>" generates the following picture:

  • <sha rrggbb;width;offset> ... </sha> define a text with a shadow, where rr/gg/bb represents the red/green/blue values of the shadow color, 808080 if missing as gray, width indicates the size of shadow, 4 if missing, and offset indicates the offset from the origin to display the text's shadow, 2 if missing. The text color or <fgcolor> defines the color to show the inside text. The <font> HTML tag can be used to define the height of the font.  For instance the "<font ;31><sha>shadow</sha></font>" generates the following picture:

    or  "<font ;31><sha 404040;5;0><fgcolor=FFFFFF>outline anti-aliasing</fgcolor></sha></font>" gets:

(String expression)


   exTextExtWordWrap5 Specifies that the object is wrapping the text. The exTextExt value specifies the HTML text to be displayed on the part of the EBN object. This property has effect only if there is a text assigned to the part using the exTextExt flag.

(Boolean expression)


   exTextExtAlignment6 Indicates the alignment of the text on the object. The exTextExt value specifies the HTML text to be displayed on the part of the EBN object. This property has effect only if there is a text assigned to the part using the exTextExt flag.

The valid values for exTextExtAlignment are:

  • 0, ( hexa 0x00, Top-Left ), Text is vertically aligned at the top, and horizontally aligned on the left.
  • 1, ( hexa 0x01, Top-Center ), Text is vertically aligned at the top, and horizontally aligned at the center.
  • 2, ( hexa 0x02, Top-Right ), Text is vertically aligned at the top, and horizontally aligned on the right.
  • 16, ( hexa 0x10, Middle-Left ), Text is vertically aligned in the middle, and horizontally aligned on the left.
  • 17, ( hexa 0x11, Middle-Center  ), Text is vertically aligned in the middle, and horizontally aligned at the center.
  • 18, ( hexa 0x12, Middle-Right  ), Text is vertically aligned in the middle, and horizontally aligned on the right.
  • 32, ( hexa 0x20, Bottom-Left  ), Text is vertically aligned at the bottom, and horizontally aligned on the left.
  • 33, ( hexa 0x21, Bottom-Center ), Text is vertically aligned at the bottom, and horizontally aligned at the center.
  • 34, ( hexa 0x22, Bottom-Right ), Text is vertically aligned at the bottom, and horizontally aligned on the right.

(Numeric expression)


   exPatternExt7 Indicates the pattern to be shown on the object. The exPatternColorExt specifies the color to show the pattern.

The valid values for exPatternExt are:

  • 0, ( hexa 0x000, Empty ), The pattern is not visible
  • 1, ( hexa 0x001, Solid ),
  • 2, ( hexa 0x002, Dot ),
  • 3, ( hexa 0x003, Shadow ),
  • 4, ( hexa 0x004, NDot ),
  • 5, ( hexa 0x005, FDiagonal ),
  • 6, ( hexa 0x006, BDiagonal ),
  • 7, ( hexa 0x007, DiagCross ),
  • 8, ( hexa 0x008, Vertical ),
  • 9, ( hexa 0x009, Horizontal ),
  • 10, ( hexa 0x00A, Cross ),
  • 11, ( hexa 0x00B, Brick ),
  • 12, ( hexa 0x00C, Yard ),
  • 256, ( hexa 0x100, Frame ), . The exFrameColorExt specifies the color to show the frame. The Frame flag can be combined with any other flags.
  • 768, ( hexa 0x300, FrameThick ), . The exFrameColorExt specifies the color to show the frame. The Frame flag can be combined with any other flags.

(Numeric expression)


   exPatternColorExt8 Indicates the color to show the pattern on the object. The exPatternColorExt property has effect only if the exPatternExt property is not 0 ( empty ). The exFrameColorExt specifies the color to show the frame ( the exPatternExt property includes the exFrame or exFrameThick flag )

(Color expression)


   exFrameColorExt9 Indicates the color to show the border-frame on the object. This property set the Frame flag for exPatternExt property.

(Color expression)


   exFrameThickExt10 Specifies that a thick-frame is shown around the object. This property set the FrameThick flag for exPatternExt property.

(Boolean expression)


   exUserDataExt11 Specifies an extra-data associated with the object.

(Variant expression)
