| Type | Description | ||
| Value as Variant | A long expression that indicates the value of the item being expanded, a string expression that indicates the caption of the item being expanded. | |||
| Boolean | A boolean expression that indicates whether the item is expanded or collapsed. |
By default, the items in a drop down editor are collapsed. Use the ExpandItem to expand a specified item. Use the ExpandAll method to expand all items in the editor. Use the InsertItem method to insert a child item to your built-in editor. Use the AddItem method to add new predefined values. Use the AddButton method to add a button to the editor. Use the DropDownAutoWidth property on False, when inserting predefined values as child items.

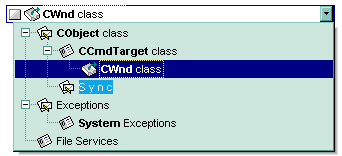

The following screen show shows a simple hierarchy into a built-in DropDownList editor:
The following VB sample adds a simple hierarchy to a DropDownList built-in editor:
The following VB samples adds a simple hierarchy to a PickEditType buil-in editor:
With G2antt1.Items
With .CellEditor(.FirstVisibleItem, 0)
.EditType = EXG2ANTTLibCtl.PickEditType
.AddItem 0, "Organization"
.InsertItem 1, "UN", , 0
.InsertItem 2, "ONU", , 0
.ExpandItem(0) = True
End With
End With
The following C++ sample adds a simple hierarchy to a PickEditType built-in editor:
#include "Items.h" #include "Editor.h" COleVariant vtMissing; V_VT( &vtMissing) = VT_ERROR; CItems items = m_g2antt.GetItems(); CEditor editor = items.GetCellEditor( COleVariant( items.GetFirstVisibleItem() ), COleVariant( long(0) ) ); editor.SetEditType( 14 /*PickEditType*/ ); editor.AddItem( 0, "Organization", vtMissing ); editor.InsertItem( 1, "UN", vtMissing, COleVariant( long(0) ) ); editor.InsertItem( 2, "ONU", vtMissing, COleVariant( long(0) ) ); editor.SetExpandItem( COleVariant(long(0)), TRUE);
The following VB.NET sample adds a simple hierarchy to a DropDownListType built-in editor:
With AxG2antt1.Items
With .CellEditor(.FirstVisibleItem, 0)
.EditType = EXG2ANTTLib.EditTypeEnum.DropDownListType
.AddItem(0, "Organization")
.InsertItem(1, "UN", , 0)
.InsertItem(2, "ONU", , 0)
.ExpandItem(0) = True
End With
End With
The following C# sample adds a simple hierarchy to a DropDownListType built-in editor:
EXG2ANTTLib.Items items = axG2antt1.Items; EXG2ANTTLib.Editor editor = items.get_CellEditor(items.FirstVisibleItem, 0); editor.EditType = EXG2ANTTLib.EditTypeEnum.DropDownListType; editor.AddItem(0, "Organization", null); editor.InsertItem(1, "UN",null, 0); editor.InsertItem(2, "ONU",null, 0); editor.set_ExpandItem(0, true);
The following VFP sample adds a simple hierarchy to a DropDownType built-in editor:
with thisform.G2antt1.Items
With .CellEditor(.FirstVisibleItem, 0)
.EditType = 14 && PickEdiType
.AddItem(0, "Organization")
.InsertItem(1, "UN", , 0)
.InsertItem(2, "ONU", , 0)
.ExpandItem(0) = .t.
EndWith
endwith
