Items.CellMerge Property (ExComboBox)

Use the CellMerge property to combine two or more cells in the same item in a single cell. The data of the source cell is displayed in the new larger cell. All the other cells' data is not lost. Use the ItemDivider property to display a single cell in the entire item. Use the UnmergeCells method to unmerge the merged cells. Use the CellMerge property to unmerge a single cell. Use the MergeCells method to combine one or more cells in a single cell. Use the Add method to add new columns to the control. Use the LockedItemCount property to add or remove items locked to the top or bottom side of the control.

The following sample shows few methods to unmerge cells:

With ComboBox1
    With .Items
        .UnmergeCells .ItemCell(.RootItem(0), 0)
    End With
End With

With ComboBox1
    With .Items
        Dim r As Long
        r = .RootItem(0)
        .UnmergeCells Array(.ItemCell(r, 0), .ItemCell(r, 1))
    End With
End With

With ComboBox1
    .BeginUpdate
    With .Items
        .CellMerge(.RootItem(0), 0) = -1
        .CellMerge(.RootItem(0), 1) = -1
        .CellMerge(.RootItem(0), 2) = -1
    End With
    .EndUpdate
End With

You can merge the first three cells in the root item using any of the following methods:

 With ComboBox1
    With .Items
        .CellMerge(.RootItem(0), 0) = Array(1, 2)
    End With
End With

With ComboBox1
    .BeginUpdate
    With .Items
        Dim r As Long
        r = .RootItem(0)
        .CellMerge(r, 0) = 1
        .CellMerge(r, 0) = 2
    End With
    .EndUpdate
End With

With ComboBox1
    .BeginUpdate
    With .Items
        Dim r As Long
        r = .RootItem(0)
        .MergeCells .ItemCell(r, 0), .ItemCell(r, 1)
        .MergeCells .ItemCell(r, 0), .ItemCell(r, 2)
    End With
    .EndUpdate
End With

With ComboBox1
    With .Items
        Dim r As Long
        r = .RootItem(0)
        .MergeCells .ItemCell(r, 0), Array(.ItemCell(r, 1), .ItemCell(r, 2))
    End With
End With

With ComboBox1
    With .Items
        Dim r As Long
        r = .RootItem(0)
        .MergeCells Array(.ItemCell(r, 0), .ItemCell(r, 1), .ItemCell(r, 2))
    End With
End With

The following VB sample merges the first three cells in the focused item:

With ComboBox1.Items
    .CellMerge(.FocusItem, 0) = 1
    .CellMerge(.FocusItem, 0) = 2
End With

The following C++ sample merges the first three cells in the focused item:

#include "Items.h"
CItems items = m_combobox.GetItems();
COleVariant vtItem( items.GetFocusItem() ), vtColumn( long( 0 ) );
items.SetCellMerge( vtItem, vtColumn, COleVariant( long(1) ) );
items.SetCellMerge( vtItem, vtColumn, COleVariant( long(2) ) );

The following VB.NET sample merges the first three cells in the focused item:

With AxComboBox1.Items
    .CellMerge(.FocusItem, 0) = 1
    .CellMerge(.FocusItem, 0) = 2
End With

The following C# sample merges the first three cells in the focused item:

axComboBox1.Items.set_CellMerge(axComboBox1.Items.FocusItem, 0, 1);
axComboBox1.Items.set_CellMerge(axComboBox1.Items.FocusItem, 0, 2);

The following VFP sample merges the first three cells in the focused item:

with thisform.ComboBox1.Items
	.DefaultItem = .FocusItem
	.CellMerge(0,0) = 1
	.CellMerge(0,0) = 2
endwith

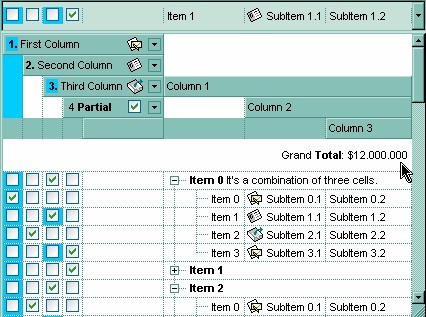

In other words, the sample shows how to display the first cell using the space occupied by three cells.

		Type	Description
		Item as Variant	A long expression that indicates the item's handle.
		ColIndex as Variant	A long expression that indicates the column's index, a string expression that indicates the column's caption or the column's key.
		Variant	A long expression that indicates the index of the cell that's merged with, a safe array that holds the indexes of the cells being merged.
